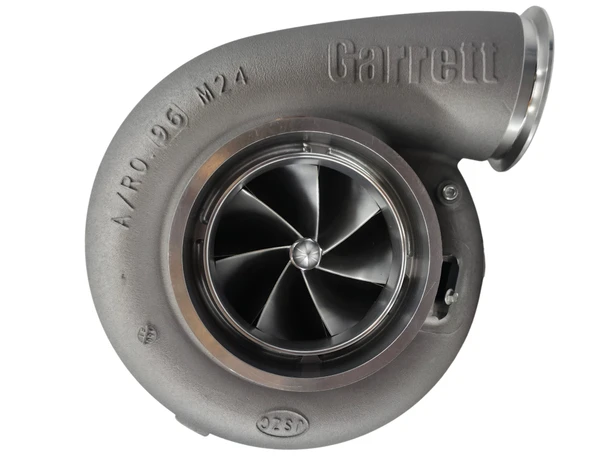

Momentum Worx G57 MAX 112MM / 160MM | Garrett G57 Ball Bearing Supercore | MMWX.G57.112

The Momentum Worx G57 MAX takes the genuine Garrett G57 platform and upgrades it with a custom 112MM / 160MM 7+7 billet compressor wheel for extreme high-horsepower applications requiring additional compressor airflow.

Each G57 MAX starts with a genuine Garrett G57 ball-bearing supercore and is machined specifically for the larger Momentum Worx compressor configuration while retaining the massive factory G57 turbine stage.

The finished supercore is machined, assembled, and balanced in the USA.

Turbocharger Specifications & Features

• Genuine Garrett G57 foundation
• Custom Momentum Worx G57 MAX configuration
• 112MM / 160MM billet compressor wheel
• 7+7 compressor blade configuration
• 118MM / 112MM Garrett G57 turbine wheel
• Garrett dual ceramic ball-bearing center section
• Machined for the custom 112MM compressor configuration
• Assembled and balanced in the USA
• Sold as a supercore assembly

Garrett's standard G57 lineup uses compressor inducer sizes ranging from 88MM through 106MM. The G57 MAX increases compressor inducer size to 112MM while retaining the large G57 turbine and ball-bearing platform.

Genuine Garrett G57 Foundation

The G57 MAX is not a generic turbocharger built around G57-style dimensions.

Momentum Worx starts with a genuine Garrett G57 and performs the machining and assembly required to accommodate the custom 112MM / 160MM compressor wheel.

The factory G57 turbine measures 118MM at the inducer and 112MM at the exducer, providing a large turbine stage to complement the increased compressor airflow of the G57 MAX.

Supercore Configuration

The G57 MAX is sold as a supercore assembly for custom high-performance turbocharger applications.

Turbine housing selection should be matched to the engine combination, power goals, exhaust setup, and intended use.

Verify Application Before Ordering

The G57 MAX is intended for extreme performance applications where proper turbocharger sizing and supporting modifications are critical.

Before ordering, verify that the 112MM compressor configuration and G57 turbine platform are appropriate for your engine combination, horsepower goals, exhaust system, and intended use.

Not sure whether the G57 MAX is right for your build? Contact Momentum Worx with your engine combination, displacement, fuel type, horsepower goal, and intended use, and our team can help determine the appropriate turbocharger configuration.
