Momentum Worx S410SX 78MM / 1.45 A/R | CAT 3406E / C15 Turbo Upgrade | MMWX.CAT.78145

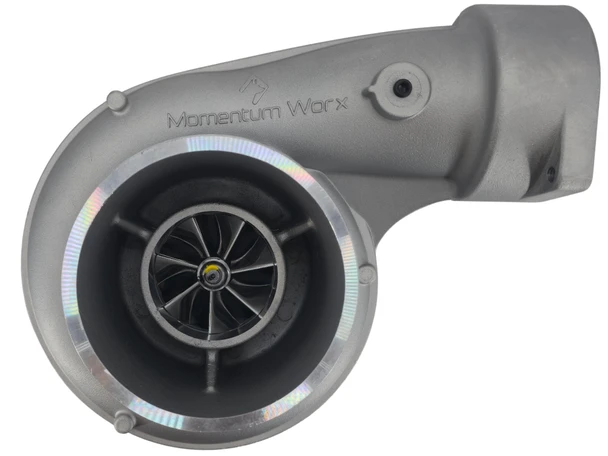

Upgrade your Caterpillar 3406E or C15 with the Momentum Worx S410SX 78MM turbocharger featuring a 1.45 A/R non-wastegated turbine housing.

Designed as a bolt-on performance upgrade for compatible CAT applications, this turbo combines a 78MM forged milled compressor wheel with a larger 1.45 A/R turbine housing to support strong airflow at higher engine speeds while helping reduce excessive exhaust drive pressure.

Product Features

• Fits select Caterpillar 3406E and C15 engines
• 78MM forged milled compressor wheel
• 360-degree thrust bearing
• Bolt-on upgrade for compatible CAT applications
• Assembled and balanced in the USA

Turbocharger Specifications

• Turbocharger Model: S410SX
• Compressor Wheel Inducer: 78MM
• Compressor Wheel Exducer: 105MM
• Turbine Wheel: 96MM
• Turbine Housing: 1.45 A/R
• Wastegate: Non-Wastegated
• Compressor Wheel: Forged Milled
• Thrust Bearing: 360 Degree
• Approximate Power Capability: 650HP*

*Horsepower capability is approximate and depends on engine configuration, fueling, tuning, supporting modifications, operating conditions, and other factors.

This turbocharger is designed as a bolt-on upgrade for compatible Caterpillar 3406E and C15 applications.

CAT engines were produced with numerous turbocharger, exhaust manifold, and engine configurations. Always verify your existing setup and turbocharger fitment before ordering.

Why Choose the 1.45 A/R Housing?

The larger 1.45 A/R turbine housing is intended for applications where reducing exhaust restriction and drive pressure is a priority.

Compared with a tighter turbine housing, the larger 1.45 A/R housing allows the turbine side to flow more exhaust gas. This can help reduce excessive drive pressure at higher engine speeds and is particularly beneficial on engines that spend significant time under load at highway RPM.

Assembled & Balanced in the USA

This Momentum Worx turbocharger is assembled and balanced in the USA to provide a high-quality performance turbocharger for demanding Caterpillar applications.

Momentum Worx Unlimited 1-Year Warranty

This turbocharger includes the Momentum Worx Unlimited 1-Year Warranty.

Our unlimited warranty provides additional protection for your Momentum Worx turbocharger and is part of our commitment to standing behind the products we build and sell.

Learn More About the Momentum Worx Unlimited 1-Year Warranty

Verify Fitment Before Ordering

This is a performance upgrade turbocharger, and proper turbo sizing is important for achieving the desired results.

Before ordering, verify that the 78MM compressor and 1.45 A/R non-wastegated turbine housing are appropriate for your engine combination, horsepower goals, and intended use.

Not sure if the 78MM / 1.45 A/R configuration is right for your truck? Contact Momentum Worx with your engine information, current modifications, horsepower goals, and how the truck is used, and our team can help determine the appropriate turbocharger for your Caterpillar application.
