Momentum Worx

Momentum Worx S410SX | 78MM / 1.32 A/R V-Band Race Cover Turbo | MMWX.V.78132

(No reviews yet) Write a Review
SKU:
MMWX.V.78132
MPN:
MMWX.V.78132

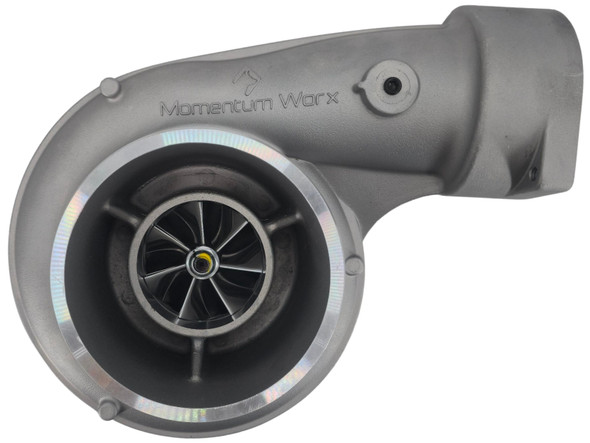

  • Top view of the Momentum Worx S410SX 78MM turbocharger showing the V-band race compressor cover, 5.5-inch air inlet, and ported anti-surge design.
  • Side profile of the Momentum Worx S410SX 78MM turbocharger showing the compressor cover, center section, and 1.32 A/R non-wastegated turbine housing.
  • Alternate side view of the S410SX turbocharger highlighting the V-band race compressor outlet, center housing, and divided T6 turbine inlet.
  • Side profile of the Momentum Worx 78MM S410SX showing the relationship between the race compressor cover and 96MM turbine assembly.
  • Opposite side view of the S410SX 78MM turbocharger showing the 1.32 A/R turbine housing, compressor housing, and overall turbocharger configuration.
  • Top view looking down at the turbine side of the Momentum Worx S410SX, highlighting the 1.32 A/R non-wastegated turbine housing and divided T6 inlet.
$2,000.00
Frequently bought together:

Description

Momentum Worx S410SX | 78MM / 1.32 A/R V-Band Race Cover Turbo | MMWX.V.78132

Direct-Fit CAT Upgrade

Designed as a performance upgrade for:

  • CAT 3406 / 3406E
  • CAT C15

For best performance, proper fueling and supporting modifications are recommended. This turbo is capable of supporting approximately 600 HP, depending on the engine setup and supporting modifications.

Features

  • V-band race compressor cover
  • Ported anti-surge compressor cover
  • Forged milled compressor wheel
  • Non-wastegated design
  • 360-degree thrust bearing
  • 5.5" air inlet
  • 5.75" full Marmon turbine outlet
  • Assembled and balanced in the USA
  • No core required

Specifications

Compressor Wheel: 105MM
Compressor Inducer: 78MM
Turbine Wheel: 96MM
Turbine Housing: 1.32 A/R
Turbine Flange: Divided T6

Momentum Worx Unlimited 1-Year Warranty

This turbo now includes the Momentum Worx Unlimited 1-Year Warranty, giving you additional protection and confidence in your purchase.
